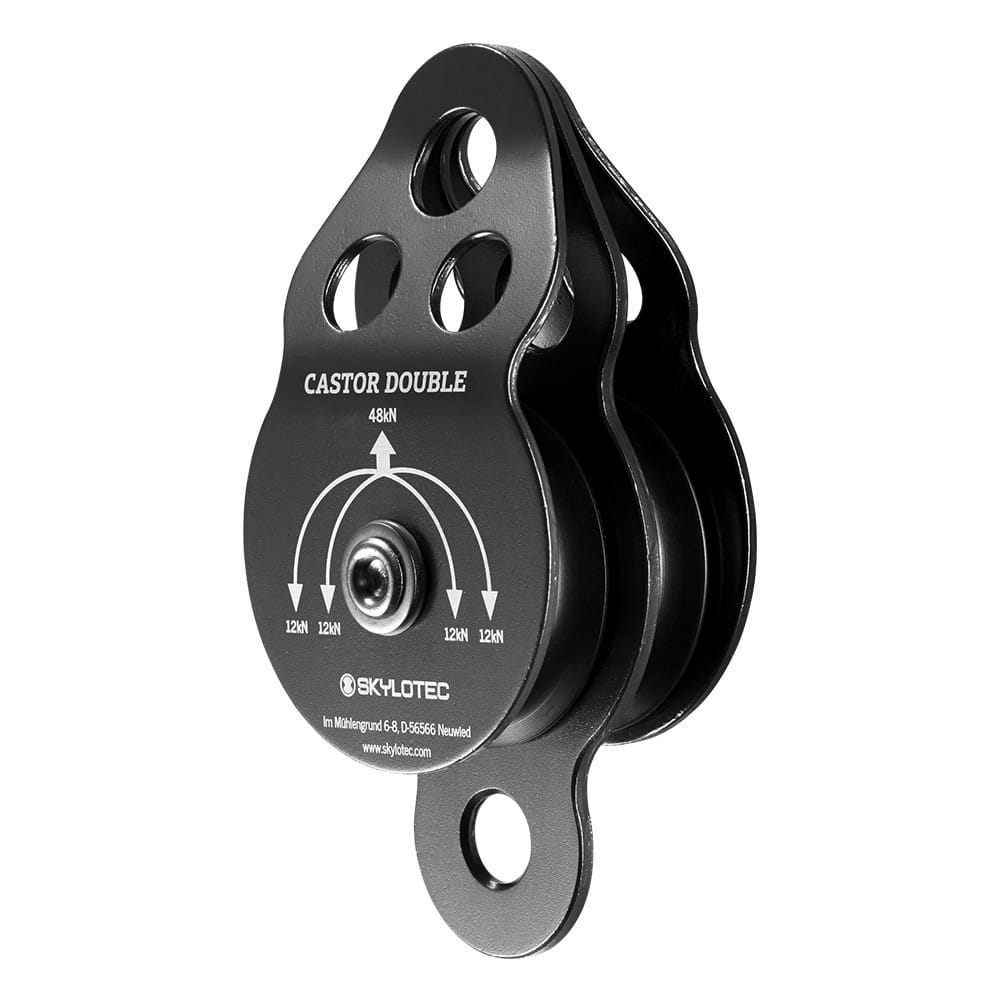

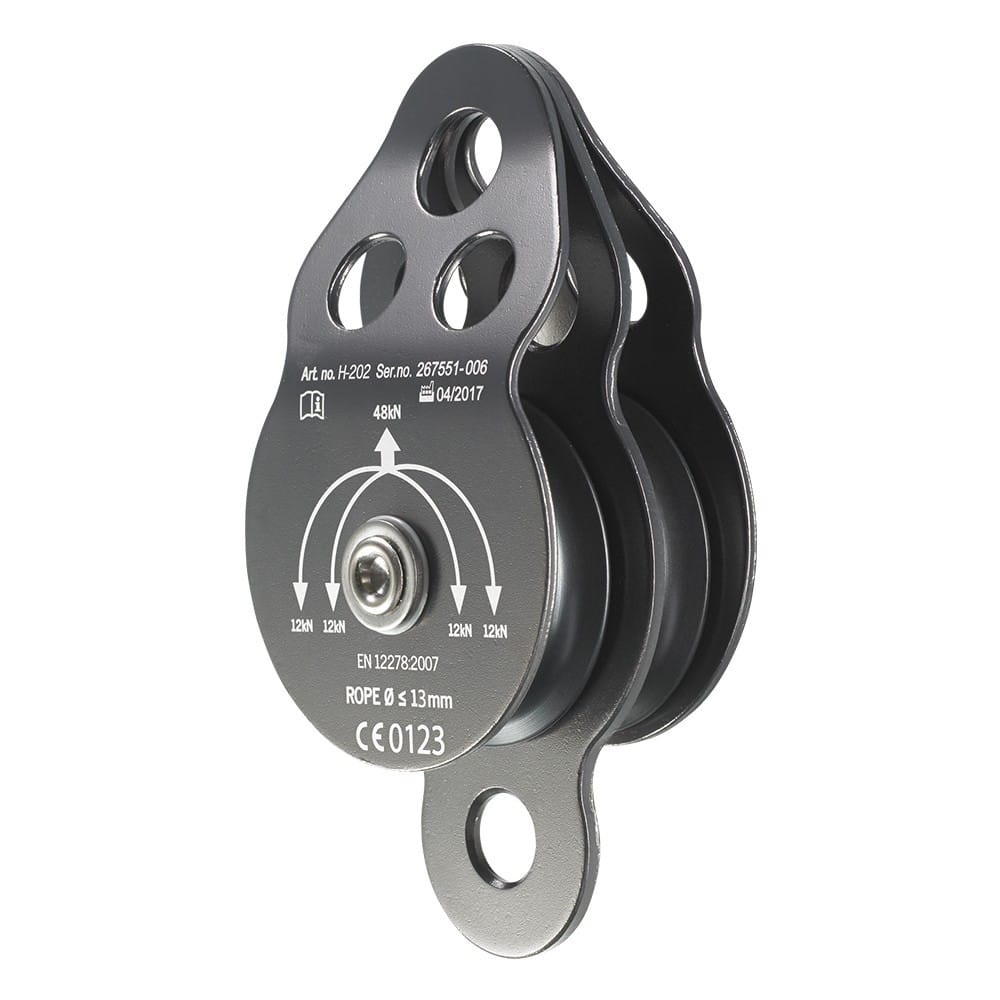

This double pulley is particularly well-suited to the hoisting of heavy loads. With two pulleys and four attachment points, it can be used in complex block and tackle systems.
- Two ball bearings, movable side plates and three attachment points allow a wide variety of uses under heavy loads
- The additional attachment points on the bottom enable use in complex block and tackle systems
- Suitable for rope diameters of up to 14 mm
ART. NO. | H-202 |
---|---|
EAN | 4030281286677 |
STANDARD | EN 12278:2007 |
COLOUR | grey |
BREAKING LOAD, MAJOR AXIS | 48,00 kN |
DIAMETER | 13,00 mm |
E-CLASS NUMBER | 40-02-01-90 |
MAX. WORKING LOAD | 20,00 kN |
MAX. SERVICE LIFE | 30 Years |
AREA OF APPLICATION | Arborists, Fire brigade / Rescue / Special Forces, Power Supplies / -Transmission / Telecommunications, Wind Energy / Offshore Industry |
CUSTOMS NO. | 84251900 |
SIZE | 170 x 80 x 60mm |
WEIGHT | 1,18 lbs |
MATERIAL | Aluminium |
