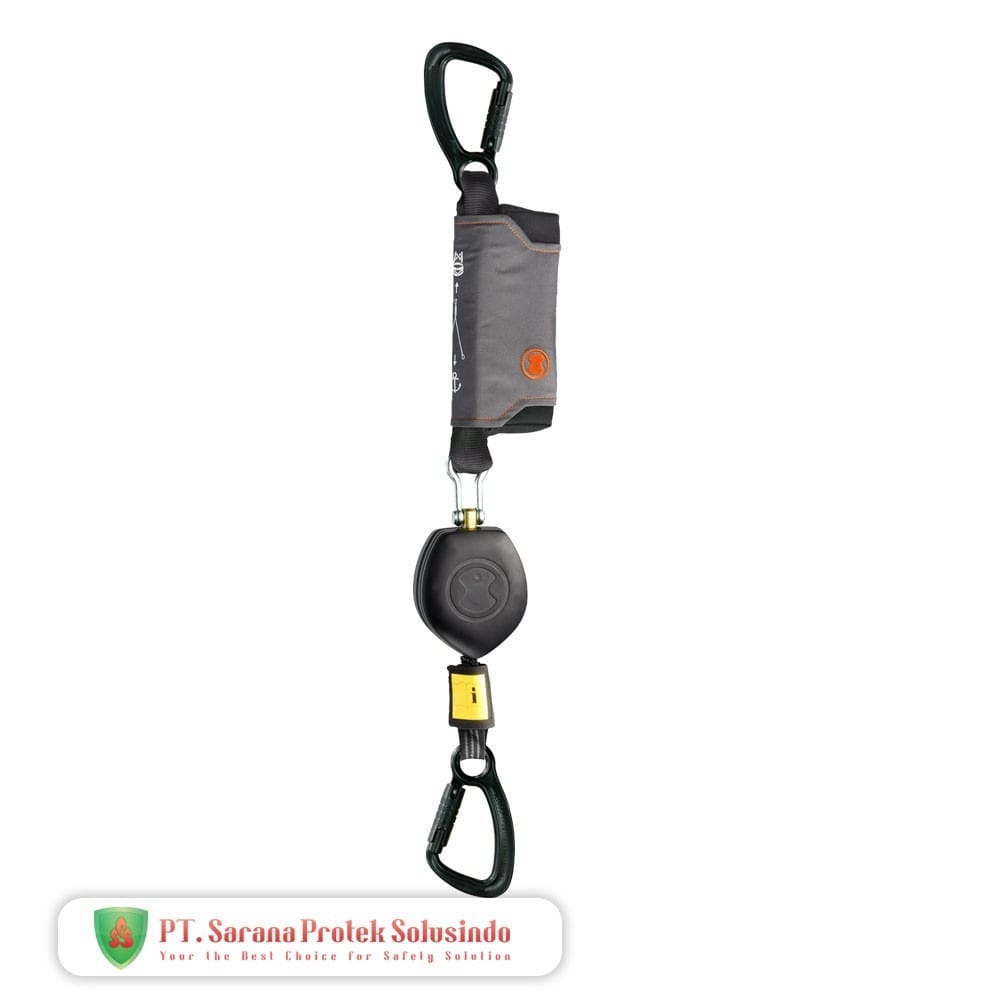

The compact connecting device PEANUT I with the STAK TRI karabiner convinces with its self-retracting arm, which does not restrict the working radius and ensures that the drop height is extremely low. The small, lightweight Trilock karabiner is particularly suitable for the anchorage eye on a working platform.
The lanyard is edge-suitable and thus also serves for horizontal securing. PEANUT I contains the One-4-All damper and is therefore suitable for a very wide range of user weights from 50 to 135 kilograms. The 1.8 m long arm makes PEANUT I ideal for securing in aerial work platforms.
Due to the spring-loaded webbing retraction, the person remains safely on the platform even in case of a catapult effect. A red indicator shows when the strap fall arrester has been triggered and provides additional safety. The PEANUT I also serves to secure the stand.
ART. NO. | HSG-021-2,5-4 |
---|---|
EAN | 4030281181989 |
STANDARD | EN 360:2002, GS-PS-12:2019, RFU PPE-R/11.060:2018, RFU PPE-R/11.085:2020, RFU PPE-R/11.124:2020 |
COLOUR | grey / black |
FALL INDICATOR | Yes |
E-CLASS NUMBER | 40-02-01-03 |
SUITABLE FOR EDGES | yes |
MAX. SERVICE LIFE | 10 Years |
MAX. NUMBER OF PERSONS | 1 |
RATED LOAD | 135 KG |
PATENT | Yes |
TEMPERATURE | 45 °C – -35 °C |
SUSPENSION ELEMENT | BAND |
AREA OF APPLICATION | Scaffolding |
CUSTOMS NO. | 84798997 |
SIZE | 2,5m |
WEIGHT | 2,17 kg |
CARABINER ON ANCHORING POINT SIDE | FS 90 ST ANSI |
CARABINER ON BELT SIDE | KOBRA TRI |
MATERIAL | Polyester, Polyamide, Steel |
