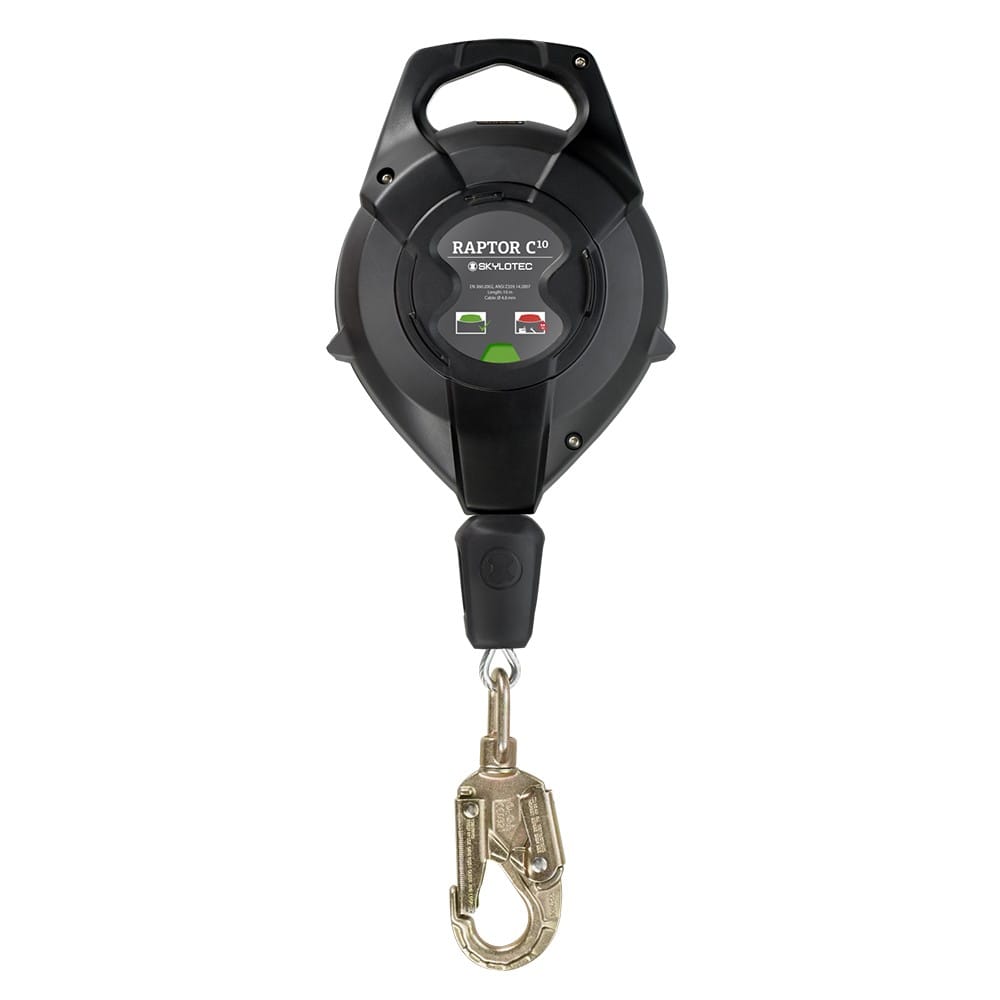

The RAPTOR fall arrester redefines the concept of safety since it has two fall indicators that are visible to users. These display the functionality of the device from the outside. A red indicator warns the user as soon as the device is due for inspection. RAPTOR has a modular construction, which means that elements can be interchanged piece by piece. This reduces maintenance costs and the time it takes for audits. An energy-absorbing inlet damper protects the device housing and interior mechanisms against damage. The rope-sparing pulley prevents additional wear. With RAPTOR attached overhead, it’s possible to work safely up to an angle of 45° with lateral deflection of up to 1.5 m. The carefully thought-out housing design allows space-saving and device-protecting storage. The device can be managed in the SKYLOTEC HOMEBASE thanks to a Data Matrix Code. Available in different versions: with galvanised steel cable in 6, 10 and 20m, with stainless steel cable in 20m or webbing in 6 and 8m lengths.
ART. NO. | HSG-US-042-10 |
---|---|
EAN | 4030281284987 |
INTERNAT. STANDARD | ANSI Z359.14:2014 |
STANDARD | CNB/P/11.060:2005, EN 360:2002 |
COLOUR | black |
FALL INDICATOR | Yes |
E-CLASS NUMBER | 40-02-01-03 |
MAX. SERVICE LIFE | 20 Years |
MAX. NUMBER OF PERSONS | 1 |
RATED LOAD | 140 KG |
TEMPERATURE | 45 °C – -35 °C |
SUSPENSION ELEMENT | ST4,8 |
AREA OF APPLICATION | Construction / Roofer / Carpenter |
CUSTOMS NO. | 84798997 |
SIZE | 10m |
WEIGHT | 12,04 lbs |
MATERIAL | AL,ST, Synthetic, Polyester |
