Skylotec SPA-TYP-6 Secupin typ 6

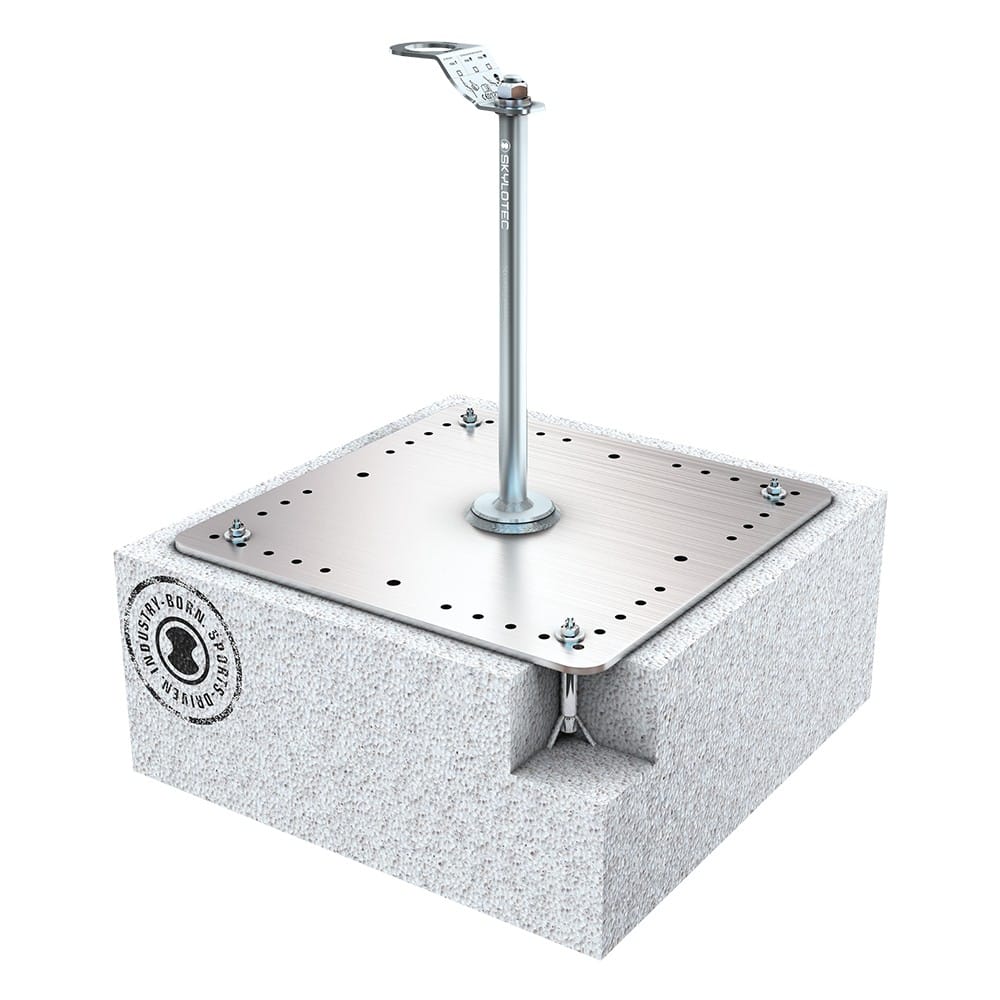

The SECUPIN, SPA-TYP-6 has a general building authority approval (abZ) from the German Institute for Building Technology (DIBt) and can therefore be installed as a single anchor point or system support for rope and rail systems to secure persons against falling. The SECUPIN TYP-6 is also tested according to EN 795 and CEN/TS 16415 The supplied fasteners are part of the system and are installed in aerated concrete according to the installation instructions. In the event of a fall, controlled plastic deformation takes place so that the dynamic forces of the fall are optimally damped. Anchoring of loads, use for material transport, or as a safety device in rope access technology are not the subject of the tests and are outside the scope of application. All anchor points from the SECUPIN series have a 360-degree rotating anchor eye and a fall indicator.

ART. NO.	SPA-TYP-6
EAN	4030281188384
E-CLASS NUMBER	40-02-01-90
AREA OF APPLICATION	Construction / Roofer / Carpenter, Permanent Fall Arrest Systems
CUSTOMS NO.	73089098

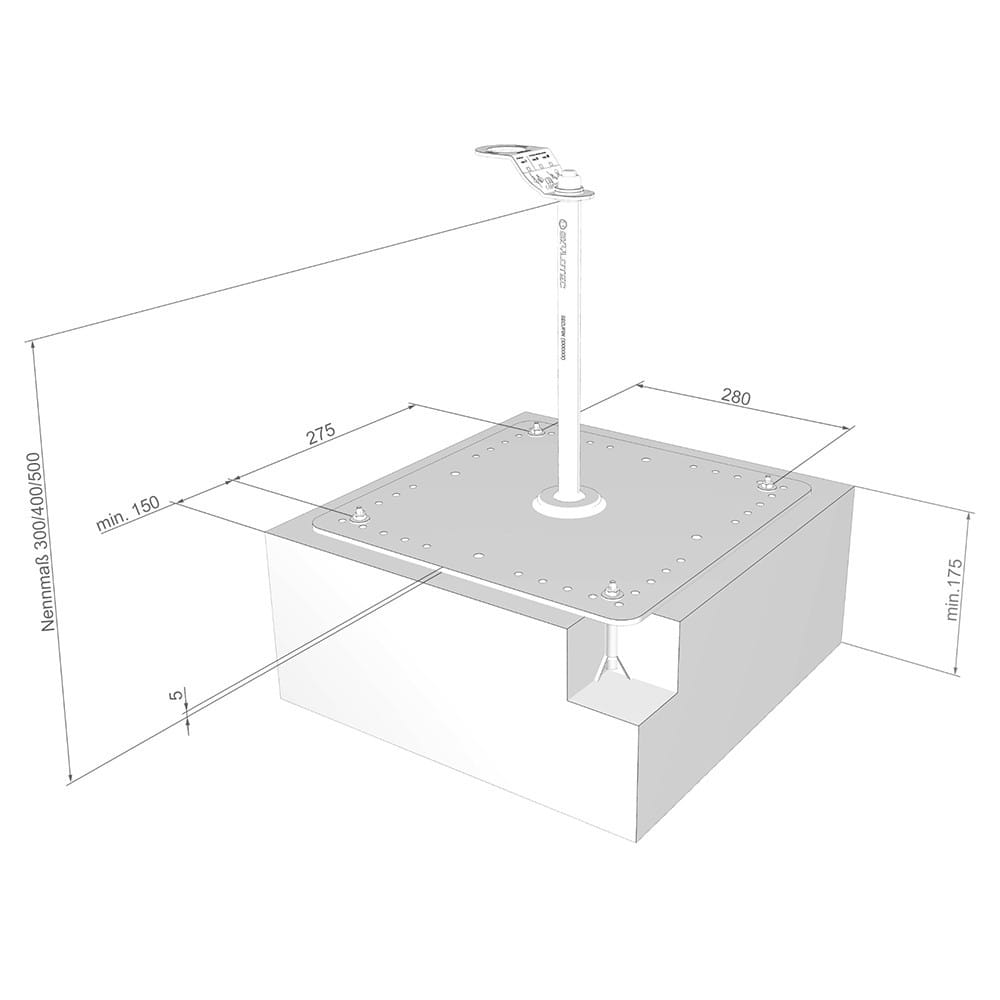

SIZE	300mm – 500mm
WEIGHT	23 – 29 lbs
MATERIAL	Stainless Steel
